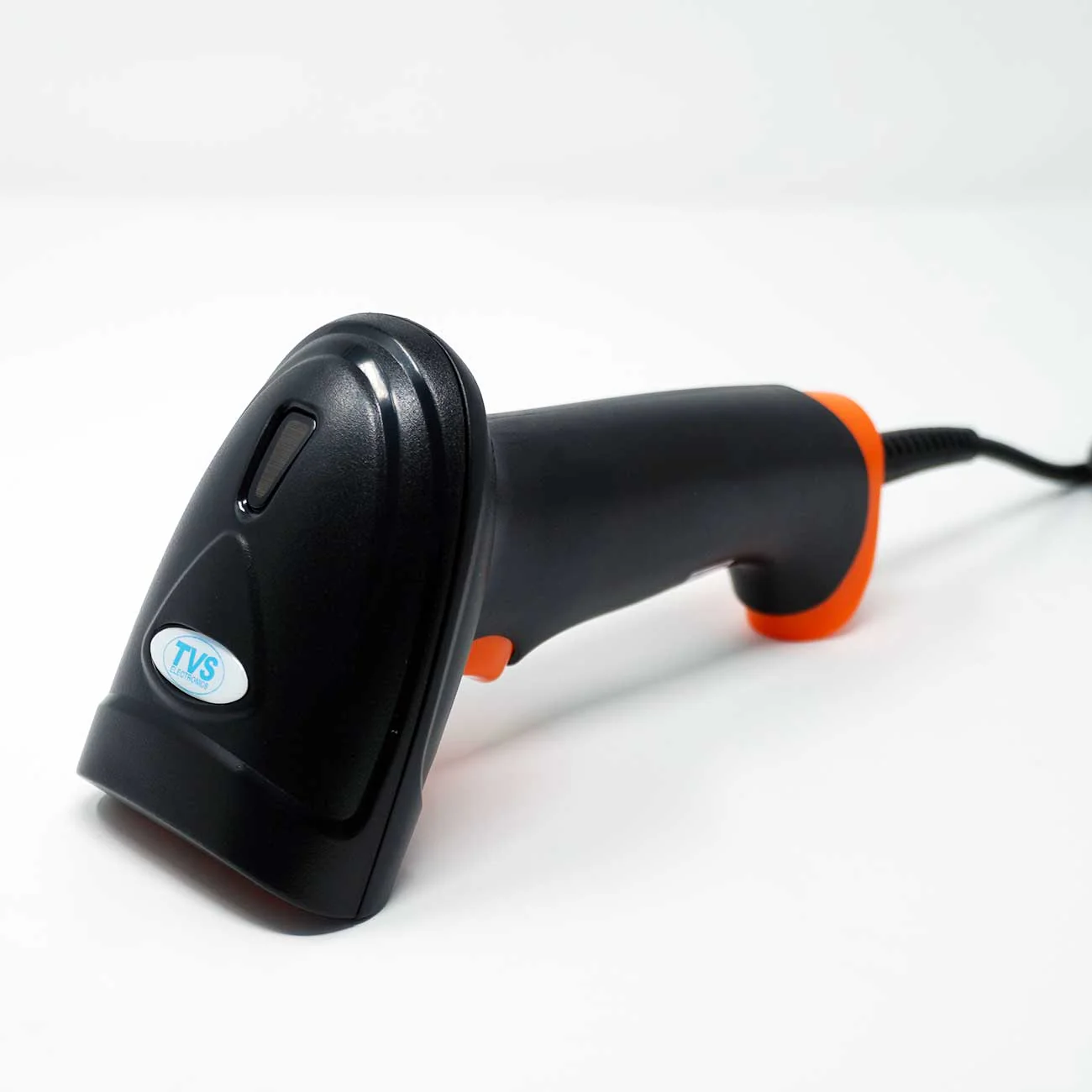

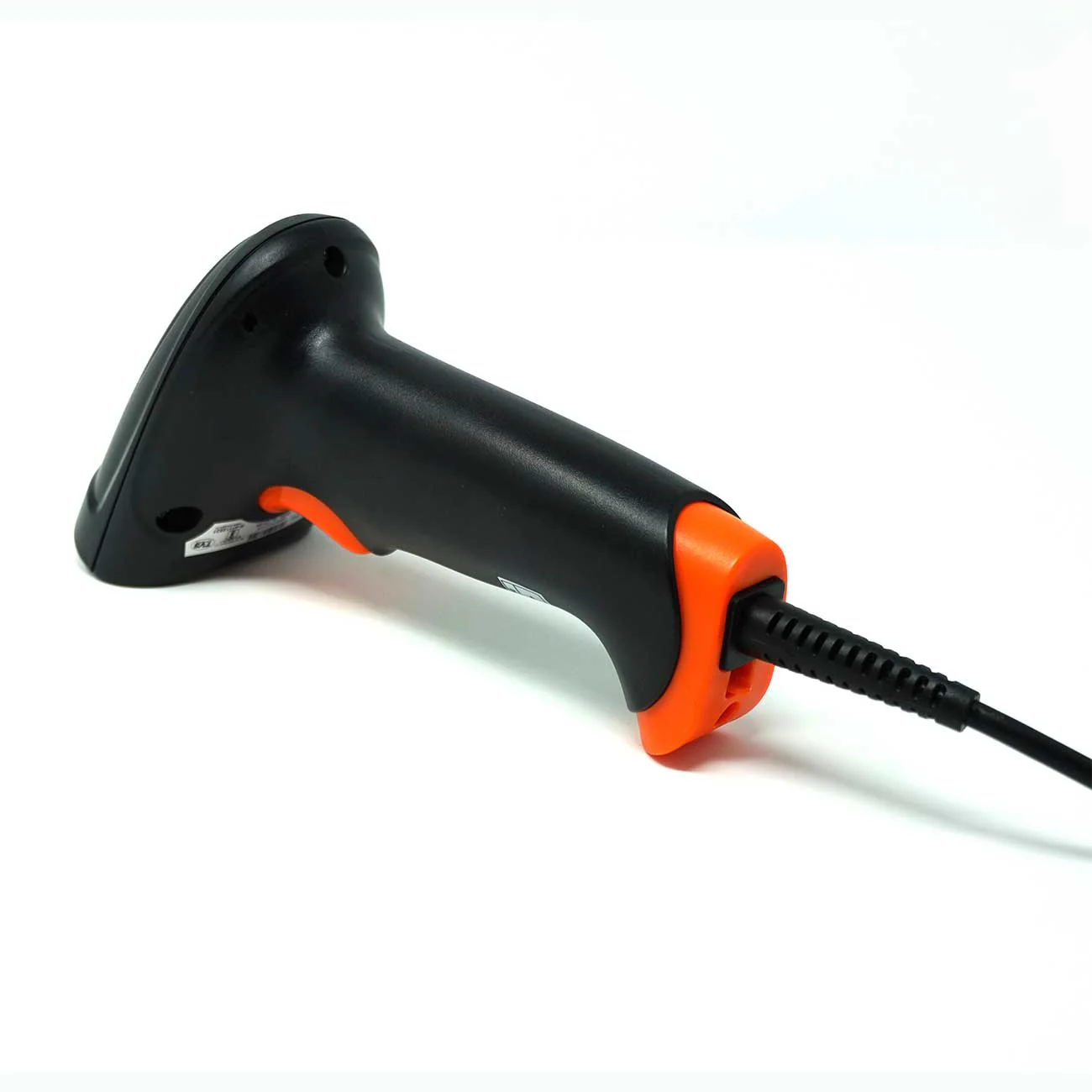

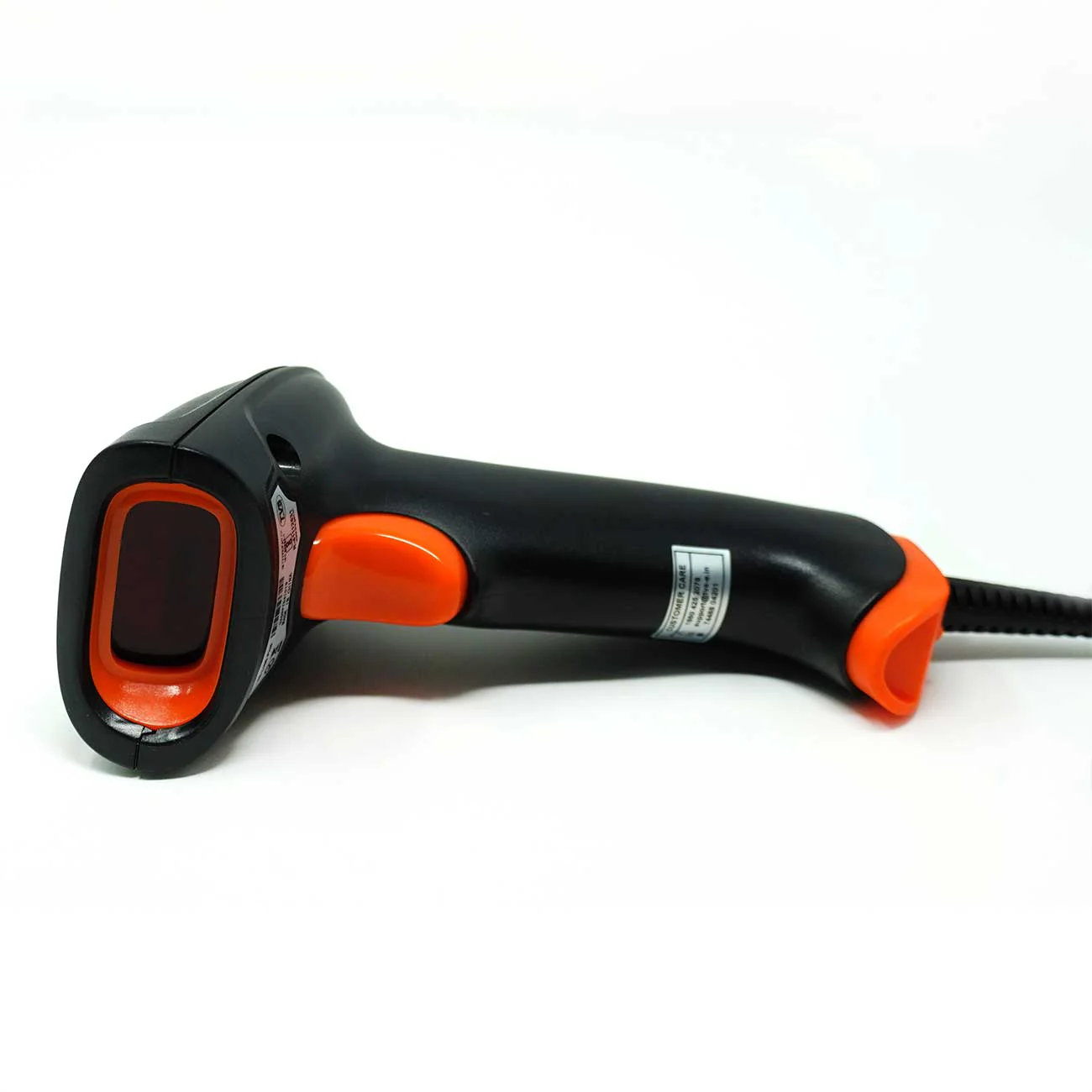

TVS BARCODE SCANNER 1D (BS-L100 PLUS)

Description

BS-L100 Plus is an affordable handheld Laser scanner that allows the user to easily target the desired bar code and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.

ADVANTAGES

• Reasonable cost and reliable option

• Minimal divergence of Laser beam provides high Depth of Focus on Bar codes
• Reads all standard 1D bar codes


  Specification	Details
  Light Source	650 mm Laser
  Supported Symbologies	EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93, CODE 128, EAN 128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, and all 1D bar codes
  Scan Type	Single Laser
  Scan Speed	300 scans/sec
  Scan Angle	Yaw 55°, Rotation 30°, Pitch 65°
  Precision	>4 mil
  Contrast	>20%
  Depth of Scan Field	0 – 280 mm
  Error Rate	Less than 1/5 million
  Interface	USB
  Dimensions	90 mm × 66 mm × 173 mm
  Weight	129.5 g
  Cable Length	2 M
  Operating Temperature	20°C ~ 50°C
  Relative Humidity	5% ~ 95%
  Light Levels (Lux)	3000 ~ 8000 Lux
  Drop/Shock Resistance	Withstands a 1.5 m drop onto concrete
  Voltage	DC 5V ± 1%
  Operating Current	85 mA
  IP Rating	IP 51
