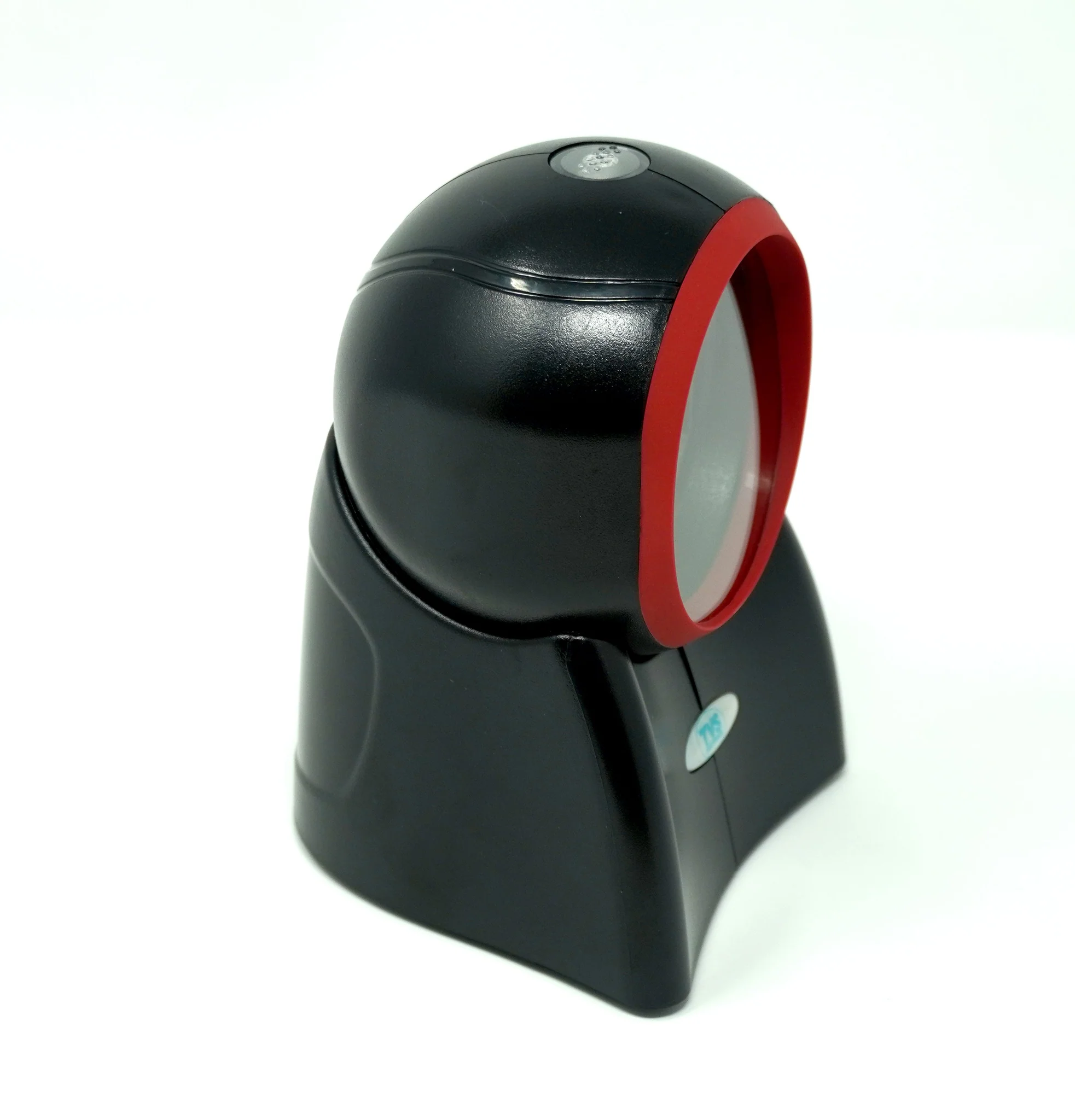

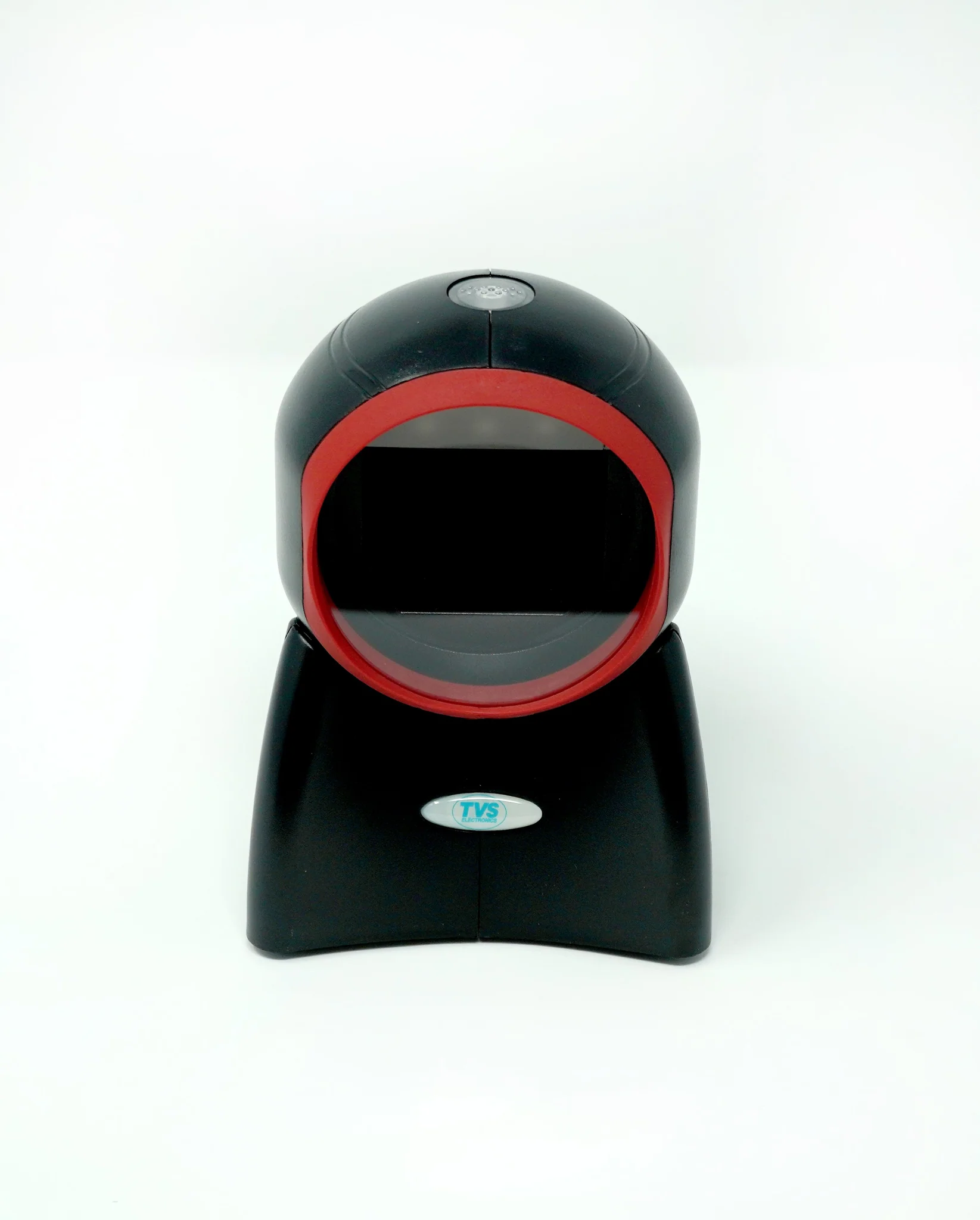

SCANNER TVS BS-I302G 2D TK76

Description

• Hands-Free Barcode reading for Retail Application
• Production Line
• Laboratories

ADVANTAGES

• Best Motion capture
• Best in class Frames / Sec rating
• Easy to switch Auto Trigger and Manual mode

  Specification	Details
  Image Sensor	752 × 480 CMOS
  Supported Symbologies	1D: EAN13, EAN8, UPCA, UPCE, ISSN, ISBN, Codabar, Code 128, Code 93, ITF6, ITF14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI Plessy, Plessy 2D: PDF417, QR Code, Data Matrix, Chinese Sensible Code
  Resolution	6.67 mil (PDF417), 5 mil (Code 39)
  Scan Distance (Examples)	Code 39: 40 – 200 mm (20 mil) EAN13: 5 – 180 mm (13 mil) QR Code: 10 – 180 mm (20 mil)
  Motion Tolerance	2.5 m/s
  Scan Angle	Pitch: ±60° @0° Roll and 0° Skew Roll: ±360° @0° Pitch and 0° Skew Skew: ±50° @0° Roll and 0° Pitch
  Symbol Contrast	≥ 25%
  Interface	USB
  Dimensions (L × W × H)	83 × 81 × 128 mm
  Weight	29 g
  Notification	Beep, LED Indicator
  Operating Current	150 mA
  Standby Current	120 mA
  Operating Temperature	20°C ~ 50°C
  Storage Temperature	-40°C ~ 70°C
  Humidity	5% – 95% RH (non-condensing)
  ESD Protection	±14 kV air discharge, ±18 kV direct discharge
  Drop Durability	1.2 m drop to concrete (6 sides, one drop per side)
  Sealing	IP50
  Accessories	USB Cable (connects scanner to host device)
