Description

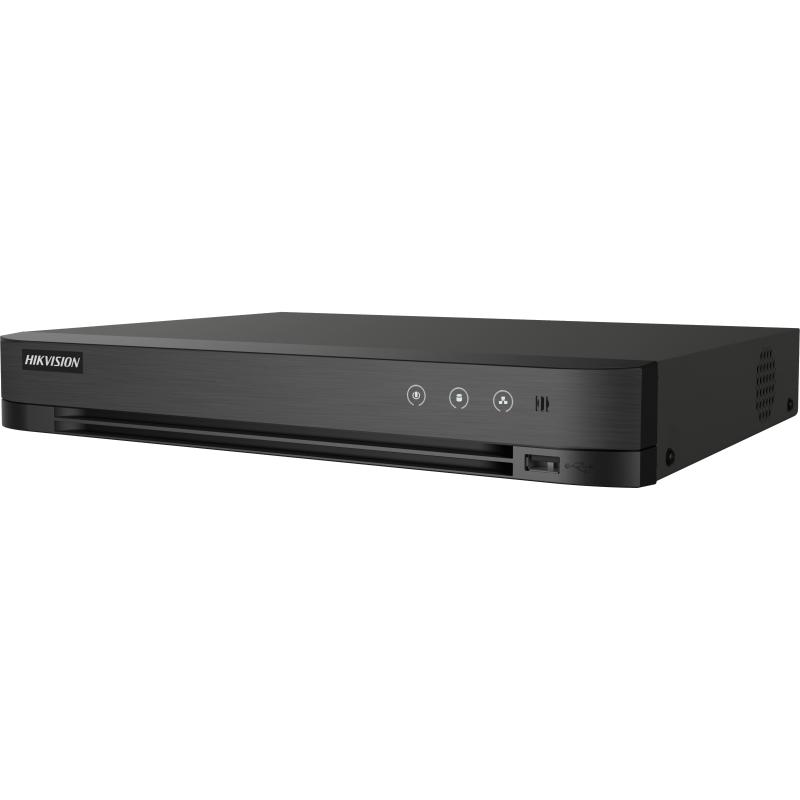

4-ch 5 MP 1U H.265 AcuSense DVR
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 4-ch AcuSearch Technology
- Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
- Up to 8 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection technology
- Efficient H.265 pro+ compression technology
-
- Facial Recognition
- Face Picture LibraryUp to 16 face picture libraries
- Face Picture Comparison
Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)
- Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
- Video and Audio
- IP Video Input
2-ch (up to 6-ch)
Up to 8 MP resolution
IP enhanced mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback4-ch
- HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,2K(2304×1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-streamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth96 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Remote Connection32
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- Capacityup to 12 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 3.0
- Alarm In/OutN/A (optional to support);4/1
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 10 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
- ≤ 1.16 kg (2.6 lb)
