Description
About this item:
4 Power Phase design
2 DIMMs, Up to DDR4 2666 MHz
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, DVI-D, HDMI
7.1 CH HD Audio (Realtek 887/897 Audio Codec)
4 x USB 3.2 Gen1 (2 Front, 2 Rear)
6 x USB 2.0 (2 Front, 4 Rear)
Realtek Gigabit LAN
Specifications:
| Feature | Specification |
| Unique Features | ASRock Super Alloy, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Live Update & APP Shop |
| CPU Support | Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151), up to 95W, 4 Power Phase Design, Intel® Turbo Boost 2.0 |
| Chipset | Intel® H370 |
| Memory | Dual Channel DDR4, 2 DIMM Slots, Max 64GB, DDR4 2666 / 2400 / 2133, XMP 2.0, 15? Gold Contact |
| BIOS | 128Mb AMI UEFI, ACPI 6.0, SMBIOS 2.7, DRAM/PCH 1.05V Voltage Multi-adjustment |
| Graphics | Intel® UHD Graphics, DirectX 12, 3 Outputs (D-Sub, DVI-D, HDMI), Triple Monitor, HDMI 1.4 (4K @ 30Hz), HDCP 2.2 support |
| Audio | 7.1 CH HD Audio (Realtek 887/897 Codec), Surge Protection |
| LAN | Gigabit LAN (Realtek RTL8111H), Wake-On-LAN, Energy Efficient Ethernet 802.3az, PXE |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot, 1 x PCIe 3.0 x1 Slot |
| Storage | 4 x SATA3 6Gb/s, RAID (RAID 0, 1, 5, 10), Intel® Rapid Storage Technology |
| Connectors | 1 x TPM Header, 1 x Chassis Intrusion Header, 1 x CPU Fan Connector (4-pin), 1 x Water Pump Fan Connector (4-pin) |

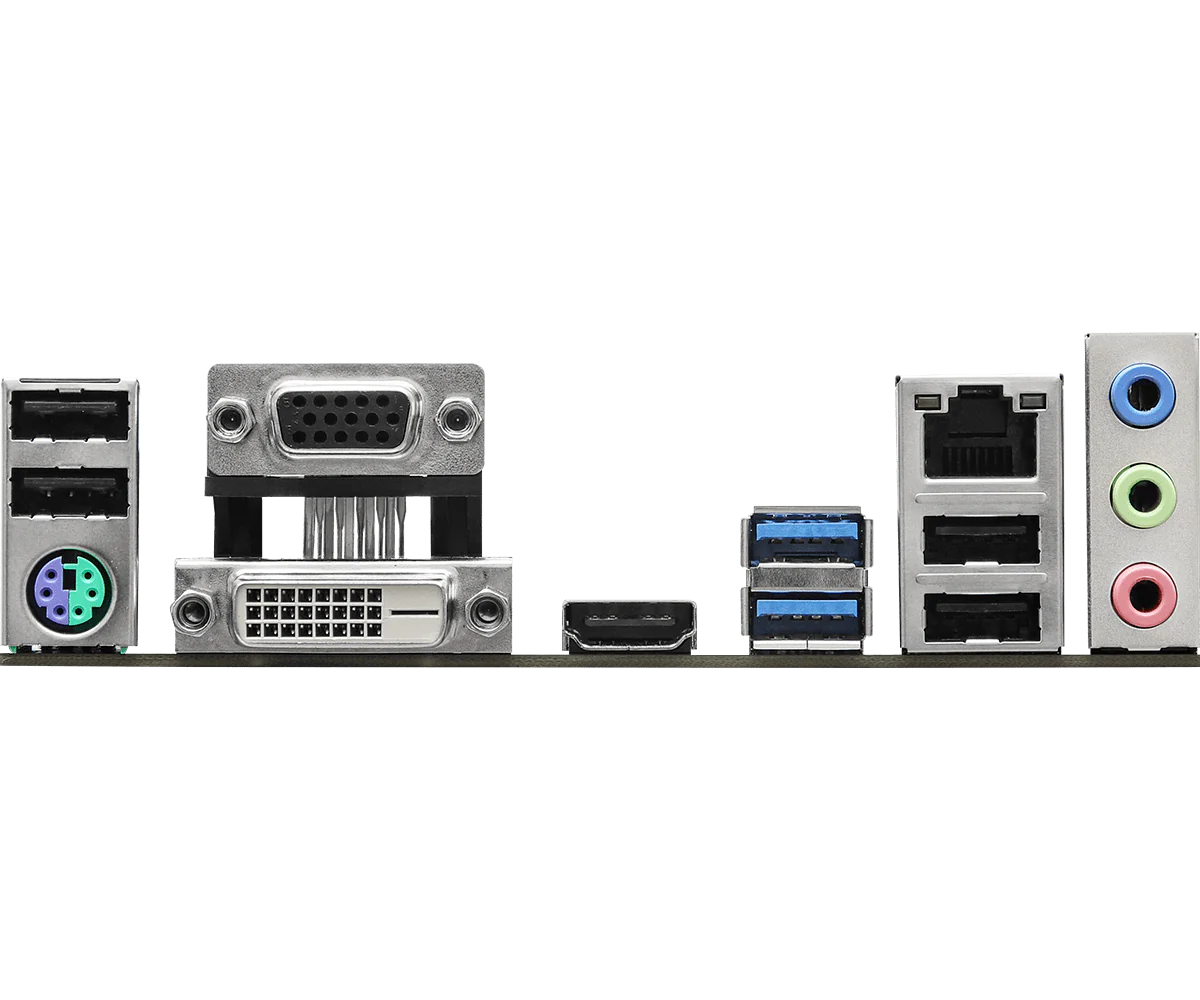

| Rear Panel I/O | 1 x PS/2 Port, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 4 x USB 2.0, 2 x USB 3.2 Gen1, 1 x RJ-45, HD Audio Jacks |
| Software | ASRock Utility (A-Tuning), EZ Mode, Full HD UEFI, Instant Flash, Internet Flash, Easy RAID Installer |
| Accessories | Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables |
| Hardware Monitoring | Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, CASE OPEN detection, Voltage Monitoring |
| Form Factor | Micro ATX (7.5″ x 7.4″), Solid Capacitor Design |
| OS Support | Windows 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
